NVE has launched the new IL76xxVE line of isolated data couplers with integrated DC-to-DC convertors.

The new parts are based on the revolutionary IsoLoop® DC-to-DC convertor technology first introduced in the ILDC11xxx stand-alone DC-to-DC converters.

Key IL76xxVE features include:

  • 250 mW 3.3-to-3.3 volt DC-to-DC convertor
  • 110 Mbps data rate
  • 1 mVp-p DC-to-DC output ripple
  • -40 to 125 degree Celsius operating range
  • 5 kVrms isolation
  • Wide-body SOIC with true 8 mm creepage

Highest Speed
The couplers are rated at a full 110 Mbps for high speed and signal fidelity.

Low Ripple
Less than 1 mV peak-to-peak ripple means low noise and reliable systems.

High Temperature
A high-temperature process and high thermal-conductivity package allow operation over the full -40 to 125 degree Celsius range. Overcurrent and thermal shutdown protection ensure safe operation.

Best-in-Class Isolation
The new parts are rated at a best-in-class 5 kVrms isolation under the rigorous new IEC60747-17 version of VDE V 0884-11. The parts are packaged in JEDEC-standard 16-pin wide-body packages with true 8 mm creepage in accordance with IEC60601.

Lowest EMI
Frequency hopping and integrated shielding provide the lowest EMI in the industry.

Low Parts Count
The integrated isolated DC-to-DC convertors require no additional regulation and ferrite beads are not necessary for EMI mitigation.

Popular Channel Configurations

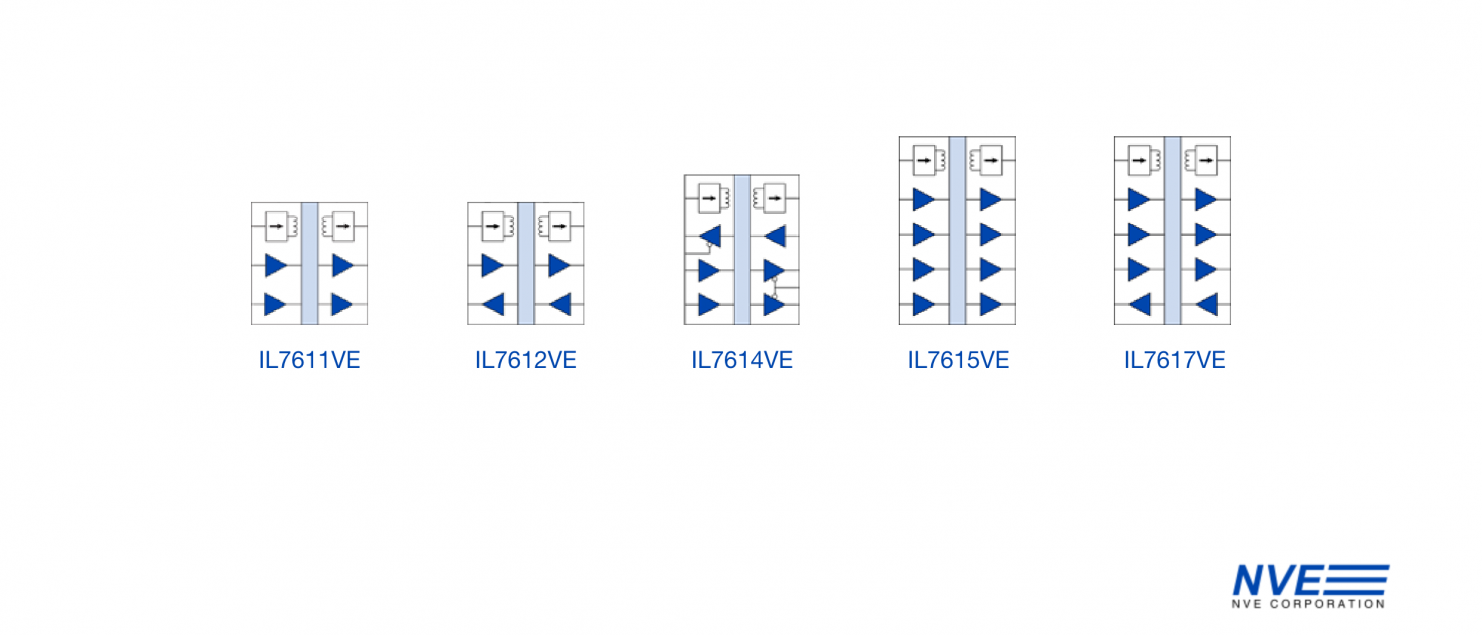

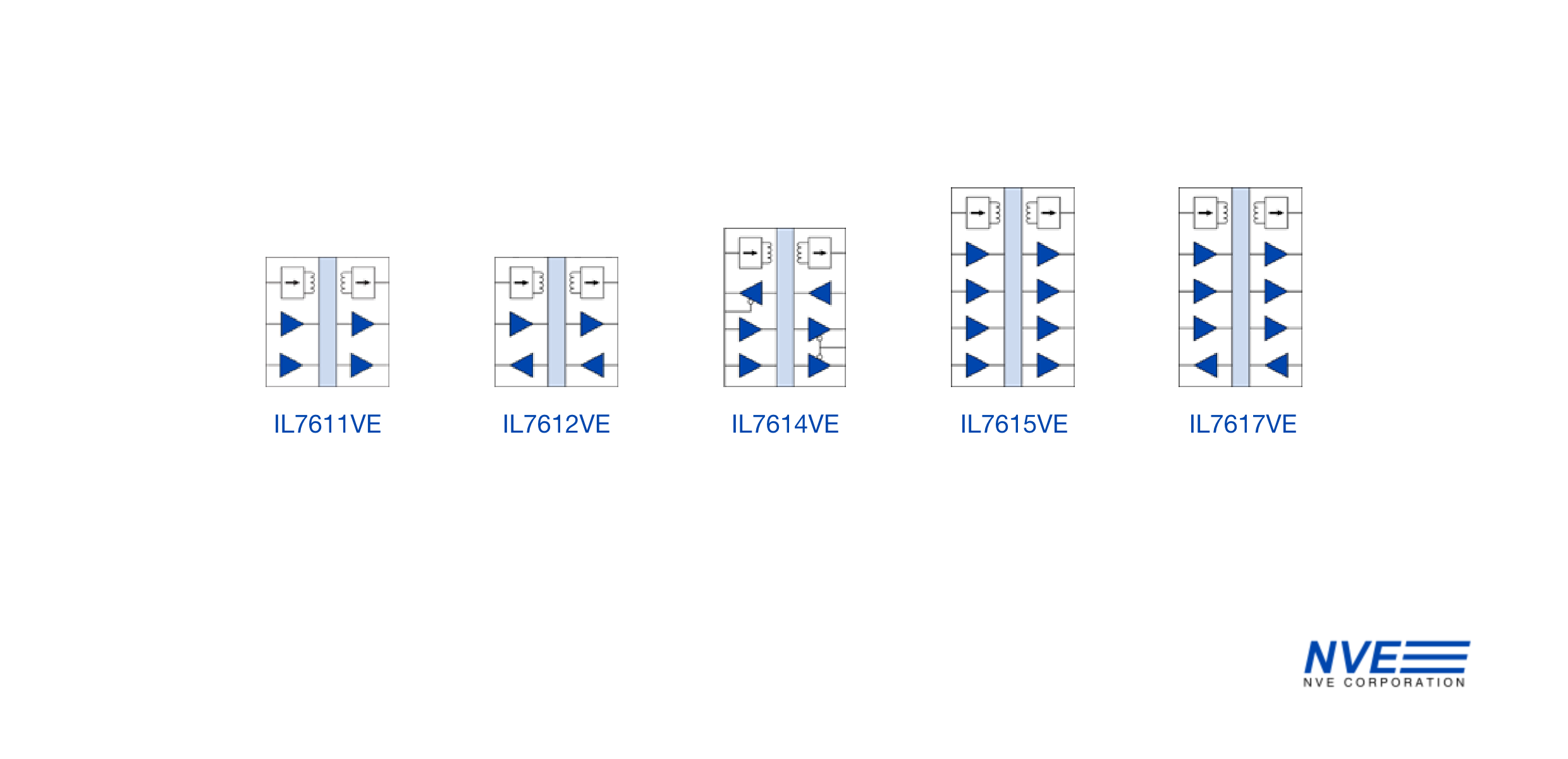

The new product line has two-, three-, and four-channel versions for a variety of applications including various SPI protocols.

Available Now
Most IL76xxVE models are in stock for immediate delivery. The IL7616VE and IL7617VE configurations will be available by the end of the second quarter.

The new parts are competitively priced. The two-channel IL7611VE and IL7612VE have end-user prices of $7.20 each in 1000-piece quantities; the three-channel IL7614VE is $7.60, and the four-channel IL7615VE, IL7616VE, and IL7617VE are $8.00.
